Flexible Wire Mesh Baskets 2.0 - 4.0 Mm Wire Gauge Easy Installation

Name: Flexible Wire Mesh Baskets 20 40 Mm Wire Gauge Easy Installation
Brand: Nova
Price: 1 USD

China Flexible Wire Mesh Baskets 2.0 - 4.0 Mm Wire Gauge Easy Installation factory

Brand Name : Nova

Model Number : Nova-119

Certification : ISO9001

Place of Origin : China

MOQ : 3000 square meters

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000 square meters per week

Delivery Time : 5-10 days, according to buyer's requirement

Packaging Details : Covered with plastic, in pallet.

Type : woven wire mesh

Material : galvanized wire,pvc coated wire

Sample : available

Aperture : 60*80mm etc

Wire gauge : 2.0-4.0mm

Color : Silver,green,grey,bule,black etc.

Contact Now

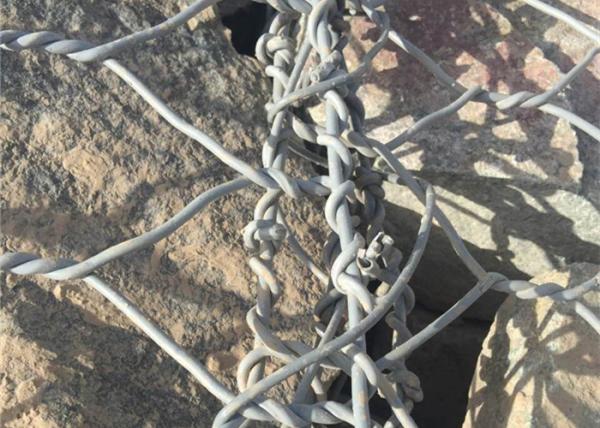

Flexible wire mesh basket / hexagonal gabion box gabion mattress

Steel wire Gabions are factory manufactured / fabricated flexible wire mesh baskets. Factory fabricated boxes, with diaphragms at 1m. Supplied at site in collapsible form Filled with stones to form variety of monolithic structures Gabion boxes -1 m height, Gabion mattresses – 0.17 m to 0.6 m thick.

Properties of the wire:

Soft annealed, low carbon content d steel provided with heavy coating of Zinc as per EN 10244-2 / ASTM A 641, In aggressive environments, 0.5 mm thick PVC Coating is also provided.PVC coating is UV stabilised and complies with ASTM A 975.

Gabions for Retaining walls / Mass gravity walls / Landslide mitigation projects:

Gabion retaining walls are mass gravity retaining structures, constructed with boulder filled Gabion boxes to retain the soil mass laterally.Using a lacing technique, Gabions are tied to adjacent Gabions to form a monolithic structure throughout the wall

Advantages:

Durability
Strength
Flexibility
Permeability
Monolithicity
Eco-friendliness
Cost effectiveness

Length (m)	Width (m)	Height (m)	Spacer number	Volume (m2)	Tolerance range
2.0	1.0	0.15---0.3	1	0.3~0.6	Length :±/-3% Width :±/-5% Height :±/-5%
3.0	1.0	0.15---0.3	2	0.45~0.9
4.0	1.0	0.15---0.3	3	0.6~1.2
2.0	1.0	0.5	1	1.0
3.0	1.0	0.5	2	1.5
4.0	1.0	0.5	3	2.0
1.0	1.0	1.0	0	1.0
1.5	1.0	1.0	0	1.5
2.0	1.0	1.0	1	2.0
3.0	1.0	1.0	2	3.0
4.0	1.0	1.0	3	4.0

The size and specifications can be product according to buyer's requirement.
